The world's most professional parcel locker solution
Provide solutions for smart parcel lockers
![KR-[定制CU12-适用S79L3].25](https://static.wixstatic.com/media/031ab5_12c24845c13844d8acdbf8cbe75ed562~mv2.jpg/v1/fill/w_980,h_980,al_c,q_85,usm_0.66_1.00_0.01,enc_avif,quality_auto/031ab5_12c24845c13844d8acdbf8cbe75ed562~mv2.jpg)
KR-[定制CU12-适用S79L3].25
![KR-[定制CU12-适用S79L3].24](https://static.wixstatic.com/media/031ab5_47254787cdf4491e8e1f35d95d408d8c~mv2.jpg/v1/fill/w_980,h_980,al_c,q_85,usm_0.66_1.00_0.01,enc_avif,quality_auto/031ab5_47254787cdf4491e8e1f35d95d408d8c~mv2.jpg)
KR-[定制CU12-适用S79L3].24
![KR-[定制CU12-适用S79L3].1](https://static.wixstatic.com/media/031ab5_7f4690e2ac094d6e85293eea0a41205a~mv2.jpg/v1/fill/w_980,h_980,al_c,q_85,usm_0.66_1.00_0.01,enc_avif,quality_auto/031ab5_7f4690e2ac094d6e85293eea0a41205a~mv2.jpg)
KR-[定制CU12-适用S79L3].1
KR-[定制CU12-适用S79L3].25
1/5
Pull to Open Lock Controller
1. With pull to open function.
2. Lock the control board, execute the command from the PC and get the feedback status to the PC, 12 locks can be connected.
3. Open development, you can design software completely as you like.
4. Support communication method: RS485.
5. It can work with computer, pad, raspberry pi.
6. It runs well on l0S, Windows and Linux.
7. Working temperature:-25°C~65°C
8. With protective box, dust proof.
9. High-quality modules, stable work.
PRODUCT PARAMETER
Product name
Pull to Open Lock Controller
Model
KR-CU12-S79L3
Brand
KERONG
Dimension of protect shell
225*111*38.9mm
Substrate material
FR4
Material of protect shell
ABS
Surface treatment
Lead free tin spraying
Micro processor module
R5F100GE
Voltage
Stand-by power consumption
DC 8V~24V
20mA@12V
Dynamic power consumption
The maximum value of a single port is 50W
Working temperature
-25℃ ~ +65℃
Working life
500000 times

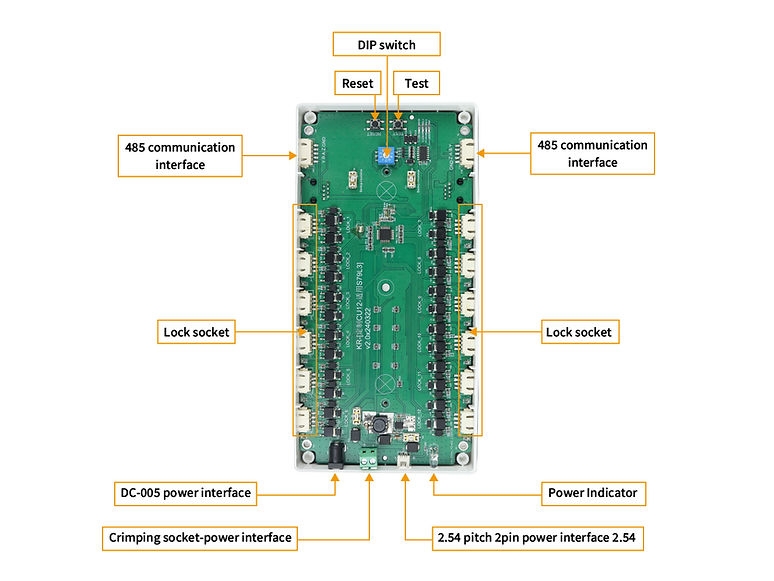

PRODUCT DESCRIPTION
Display/Screen: With software to run all parts.
KR-RS485: RS485-USB/232, connect CU together with PC directly.
KR-CU12-S79L3: Lock control unit. Receive the commands from BU/PC and send the commands to the locks. Get feedback from the lock and send it to BU/PC.
Lock: With lock ctstus detection function. Unlock when receiving the command from CU. Feedback the lock status (locked or not) to the CU.
Hot Tags: Access Control System, China, suppliers, manufacturers, factory, customized
